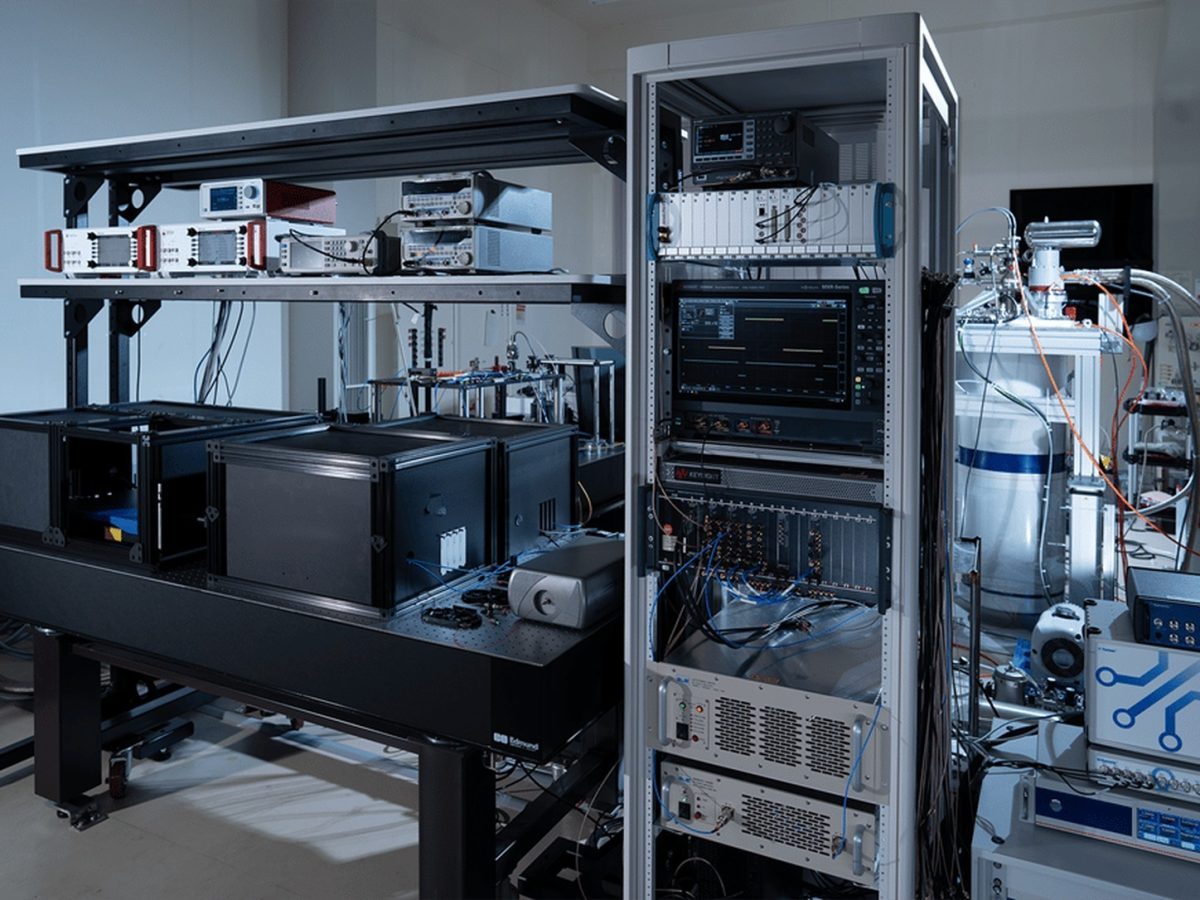

The Fujitsu diamond-spin quantum computer prototype combines tin-vacancy centers in diamond with photonic integrated circuits and runs through Fujitsu’s hybrid quantum platform. It is an engineering prototype for modular scaling, not evidence of quantum advantage or a fault-tolerant machine.

Key takeaways

  • Fujitsu says this is the first working diamond-spin prototype to integrate SnV centers with photonic circuits.
  • The system operated near -271.6°C, warmer than the typical temperature stated for superconducting systems but still cryogenic.
  • The company did not disclose qubit count, algorithm benchmarks or error-corrected logical qubits.
  • A multi-module prototype is targeted for 2027; optical links between modules are the critical next test.

Fujitsu announced the system in Kawasaki on September 8, building on research with Delft University of Technology and QuTech that began in 2020. Electronics Media and Third News independently reported the event, while peer-reviewed work cited by Fujitsu supports the underlying gate and remote-entanglement context.

Everyone else is reporting a world-first prototype; we are explaining that optical modularity is the result to test, while qubit count and useful workloads remain undisclosed. A novel material stack can be important without yet competing with established quantum systems on application performance.

What Fujitsu actually built

The prototype uses color centers: atomic-scale defects in diamond that can host quantum states. Fujitsu selected tin-vacancy, or SnV, centers and integrated diamond nanocrystals with alumina optical waveguides. Those waveguides are intended to carry photons used during qubit readout and eventually between modules.

The company also developed bonding and thinning techniques. Diamond substrates implanted with tin are bonded to alumina and silicon-dioxide substrates, then thinned from hundreds of micrometres to hundreds of nanometres. That geometry is intended to make the diamond compatible with chip-scale photonic structures.

A third layer is control software. Diamond-spin qubits require combinations of optical, microwave and radio-frequency operations. Fujitsu says it built a conversion mechanism that turns gate-model quantum circuits into the physical control sequence and exposed the prototype through its Hybrid Quantum Computing Platform.

Element Reported achievement Open evidence
Qubit medium SnV centers in diamond Public qubit count and coherence data
Photonics Diamond nanocrystals integrated with alumina waveguides Multi-module link fidelity
Temperature Operation around -271.6°C System power and refrigeration cost
Access Used through Fujitsu hybrid platform External-user workload results
Road map Multi-module prototype targeted for 2027 Delivered module scale and error rates

From material research to optical modulesFour stages show materials work, the single prototype, the current announcement and the planned multi-module proof.From material research to optical modulesResearchPrototypeCurrent eventNext proofFilled red marks the verified event; the outlined stage remains a target or open test.How to judge a quantum prototypeFour evidence gates separate device novelty from scalable useful computation.How to judge a quantum prototype1. Verify the disclosed milestone and its measurement boundary2. Separate engineering progress from commercial readiness3. Look for repeatability, yield, uptime and customer evidence4. Track the next independently testable resultCompany projections are identified as targets, not completed outcomes.Evidence scorecardA two-column scorecard distinguishes confirmed facts from evidence still needed.Evidence scorecardConfirmed nowStill to verify● Direct primary announcement● Independent event reporting● Technical context checked● Sustained production or operation● External performance validation● Economics at useful scale

Why tin-vacancy centers matter

Most familiar diamond-spin work uses nitrogen-vacancy centers. Fujitsu says SnV centers have a more symmetric structure and are less sensitive to some external noise. The claimed benefit is a brighter, more stable optical interface, which matters if photons must carry quantum information between separate modules.

Brightness alone is not enough. A modular system needs photons that are indistinguishable enough to interfere, stable optical paths, reliable spin-photon entanglement and control operations with low error. Packaging and fabrication variation can erase advantages that appear in a small laboratory device.

Fujitsu’s announcement says its SnV centers provide roughly ten times the brightness of the comparison it uses. That figure is company-reported and the release does not provide a full benchmark protocol. The article therefore treats it as a device claim, not a generalized system-performance result.

Warmer does not mean room temperature

The prototype’s reported -271.6°C operating temperature is about 1.55 kelvin. Fujitsu contrasts it with approximately -273.13°C for a typical superconducting quantum computer. Both environments remain deeply cryogenic and require specialized refrigeration, shielding and control engineering.

A higher operating temperature can expand cooling margin and may simplify some parts of system design. It does not by itself prove lower total energy use. Optical sources, microwave electronics, cryogenic hardware, control racks and classical processing all contribute to system cost.

Readers should also avoid ranking quantum technologies by temperature alone. Superconducting circuits, trapped ions, neutral atoms, photonic systems and spin defects optimize different variables. Useful systems will be judged by logical error rates, execution speed, connectivity, manufacturability and the workloads they can complete.

Optical links are the scaling bet

A modular architecture divides a large machine into smaller quantum modules and connects them. That can avoid trying to place every qubit, control line and readout element on one monolithic chip. Photons are attractive interconnects because they can travel between chips and cryostats.

The hard requirement is entanglement quality and rate. If a remote link is too noisy or too slow, error correction and communication overhead can consume the value of modularity. The link must also work repeatedly across many modules rather than in a single carefully tuned experiment.

Fujitsu cites a 2026 Nature Communications result involving remote NV centers as evidence that optical connections can mediate entanglement and gates across cryostats. That research supports the architectural direction, but it is not the same as demonstrating the new SnV prototype as a networked computer.

The hybrid platform is an integration milestone

Fujitsu says users accessed the prototype through the same hybrid platform used for other quantum resources, without needing to manage the physical-control differences. That is useful because application developers should not have to program lasers and microwave pulses directly.

Platform access does not establish useful computational performance. The release does not identify an application that ran faster, more accurately or more economically than a classical method. It also does not disclose the machine’s qubit number, circuit depth or repeatability.

The distinction resembles changes in enterprise AI platforms such as Arm’s Neoverse CSS N4 platform and the MiniCPM5-2B open-weights release: an accessible software layer can speed experimentation, but underlying hardware evidence still determines what workloads are practical. Abstraction helps adoption; it cannot substitute for device capability.

What is supported by prior research

Fujitsu points to a 2025 Physical Review Applied paper reporting two-qubit gate error below 0.1% in an NV-center system. That provides independent peer-reviewed context for high-fidelity diamond-spin control, though it uses a different vacancy center from the SnV implementation announced now.

The company also cites remote-entanglement work published in Nature Communications in 2026. Such results show why diamond spins and photons can be combined in a network architecture. They do not validate every claim about the complete prototype, its fabrication yield or its ability to scale.

This is why the source ledger separates the current primary announcement from independent technical context. A scientific prototype deserves more scrutiny than a routine software launch, especially when “world first” language depends on a narrowly defined combination of materials and circuitry.

The road map remains ambitious

Fujitsu plans a multi-module diamond-spin prototype in 2027 and says it will explore connections between diamond-spin and superconducting approaches. Its longer road map targets 250 logical qubits in fiscal 2030 and 1,000 logical qubits in fiscal 2035.

Logical qubits require error correction across multiple physical qubits and repeated high-fidelity operations. The current release does not connect its prototype to a specific physical-to-logical overhead. The targets should therefore be read as a corporate road map, not a forecast guaranteed by this device.

A credible 2027 update would disclose module count, physical qubits per module, single- and two-qubit fidelity, optical-link success rate, cycle time and sustained operation. External researchers using the platform would add evidence that the system is reproducible beyond the development team.

What the prototype proves

The Fujitsu diamond-spin quantum computer proves that the company integrated SnV-based diamond devices, photonic circuitry and a gate-control software path into an operating prototype. It does not yet prove modular scale, logical qubits or an application advantage; those require disclosed benchmarks and multi-module results.

The machine matters because it puts several difficult technologies into one system. Its importance will rise if the optical interface can connect modules at useful fidelity and rate. Until then, the correct description is a promising engineering milestone with major scaling questions still open.

Procurement teams should also watch ordinary engineering measures that quantum headlines often omit: calibration time after a cooldown, component replacement intervals, optical alignment stability and classical compute for feedback. A device that demonstrates a gate once may still be difficult to operate as a shared service. Platform logs showing repeated jobs over days, failure recovery and comparable results after maintenance would turn a laboratory integration result into stronger operational evidence.

The architecture may ultimately mix technologies instead of replacing them. Diamond modules could contribute memories or networking links while another qubit type handles local computation. Fujitsu mentions exploring such connections, but no hybrid interface has been demonstrated here. That distinction keeps the present result focused: an SnV device and photonic control stack now operate together, while the system-level division of labour remains research.

FAQs

How many qubits does Fujitsu’s prototype have?

Fujitsu did not disclose a qubit count in the September 8 announcement. That omission prevents direct capacity comparison with other quantum computers.

Is the diamond-spin computer room-temperature?

No. Fujitsu reports operation near -271.6°C. That is warmer than the typical superconducting temperature it cites, but it remains a cryogenic environment.

What is the next milestone?

Fujitsu targets a multi-module diamond-spin prototype in 2027. The key evidence will be the fidelity and rate of optical connections, along with disclosed qubit and workload benchmarks.

Sources: Fujitsu; Electronics Media; Third News; Physical Review Applied; Nature Communications.
