The HCLTech semiconductor lab has opened in Bengaluru after an investment of ₹185 crore, adding post-silicon testing, qualification and failure-analysis capability. HCLTech says the 40,000-square-foot facility includes 25,000 square feet of Class 10K and Class 1K cleanrooms for domestic and global clients.
- HCLTech invested ₹185 crore in the 40,000-square-foot Bengaluru facility.
- The lab covers electrical validation, automated testing, qualification and failure analysis.
- Its value is in shortening the handoff between chip design, testing and production qualification.
What the HCLTech semiconductor lab adds
HCLTech describes the site as an end-to-end post-silicon engineering facility. Post-silicon work begins after a chip design becomes physical hardware and engineers must validate electrical behaviour, automate tests, qualify the part for intended use and diagnose failures. That stage can reveal problems that simulations did not expose.

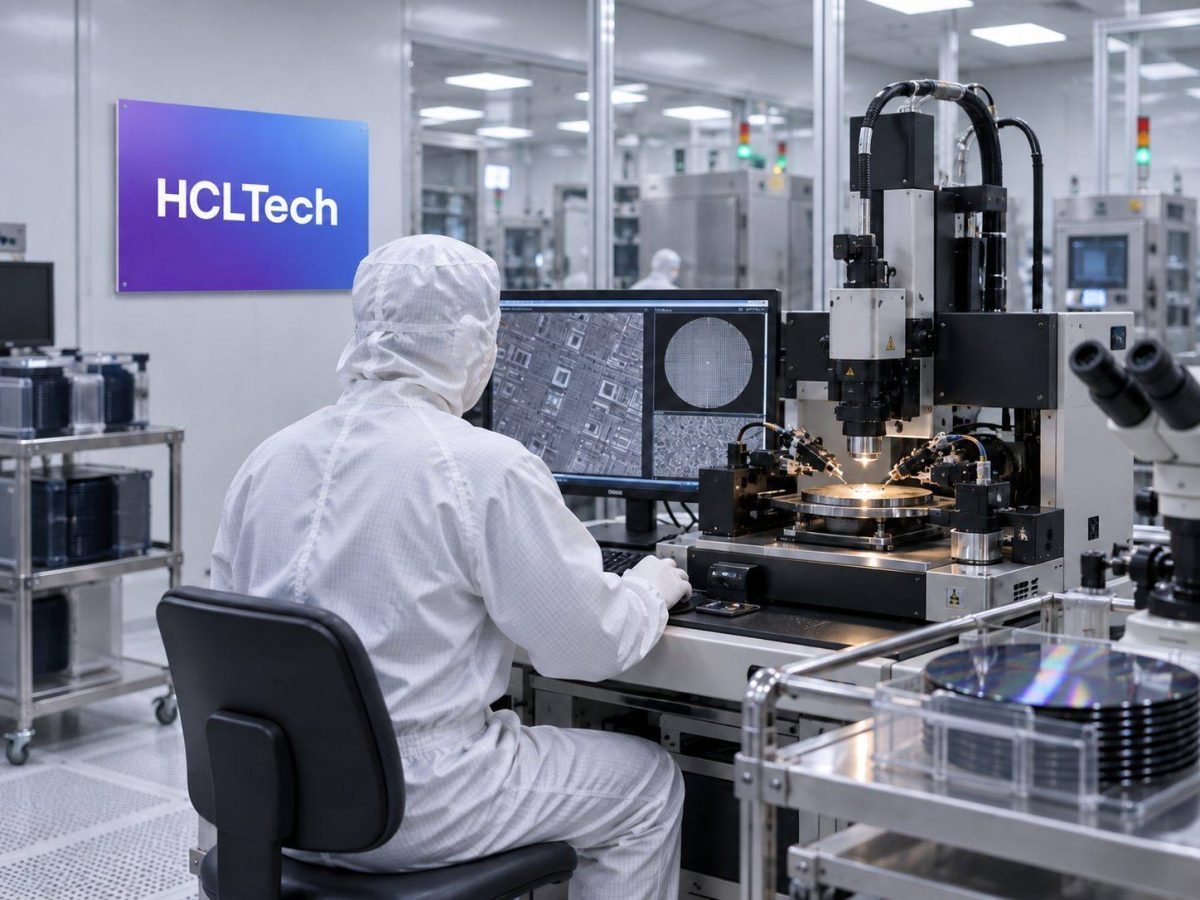

The company says the cleanroom portion includes Class 10K and Class 1K environments and that the lab contains automated test equipment, probes, qualification chambers, optical and electron microscopy, and focused-ion-beam systems. It named Teradyne, Advantest, Keysight, Tektronix and Thermo Fisher Scientific among equipment suppliers.
Everyone else is reporting a ₹185 crore lab; we are explaining the workflow bottleneck it addresses. A design-services team can move faster when electrical validation, qualification and physical failure analysis are coordinated in one facility. The promised advantage is less handoff friction, not the fabrication of chips at commercial scale.
That distinction matters because a semiconductor lab is not a wafer fab. HCLTech is offering engineering and testing capability around silicon, while high-volume manufacturing remains a different capital and operational challenge. The launch should therefore be read as an expansion of engineering services rather than a new chip-manufacturing plant.
Moneycontrol Hindi and The Week independently reported the launch, the investment and the facility’s stated area. Their coverage corroborates the central event. The detailed equipment list and certification ambitions come from HCLTech’s release and remain company claims until the relevant qualifications are completed.
HCLTech says the facility is intended to support research and development, pre-production and production qualification. It also says the lab will pursue certifications including ISO 17025, ISO 9001, AS 9100 and ISO 13485. “Set to achieve” does not mean certified today, so those standards should be treated as planned milestones.
For clients, the practical question is whether the lab improves turnaround, fault isolation and accountability across the validation cycle. For HCLTech, the commercial question is whether customers buy more integrated engineering work under its Spec2Parts model. The announcement establishes the physical capability, but does not disclose customer contracts or revenue tied to the site.
The cleanroom area is substantial within the announced footprint, but floor space alone does not determine throughput. Tool availability, engineering expertise, device complexity and qualification protocols shape how much work a laboratory can complete. HCLTech has not published a capacity figure in wafers, devices or test hours, so the facility should not be ranked against other labs using area alone.
The supplier list also signals the range of tasks the company wants to coordinate. Automated test platforms, measurement equipment and microscopy tools address different points in a failure-investigation chain. Bringing them together can help teams move from an electrical symptom to a physical cause, but the speed and success of that process will depend on actual programs and customer requirements.
| Investment | ₹185 crore |
|---|---|
| Total area | 40,000 sq ft |
| Cleanroom area | 25,000 sq ft |
| Location | Bengaluru |
