Superconducting tape inspection can now follow both thickness and width continuously without touching the moving material, according to a September 7 announcement from the Korea Electrotechnology Research Institute. KERI says its reel-to-reel system holds measurement error to 1.5 micrometres or less while tape moves at 100 metres per hour.
How KERI’s superconducting tape inspection works
High-temperature superconducting wire is manufactured as a thin, long tape. A completed magnet can contain hundreds of turns, so a local thickness error can accumulate into a larger winding error. Cutting samples for measurement is slow and destroys valuable material, while a contact gauge risks affecting a fragile surface.

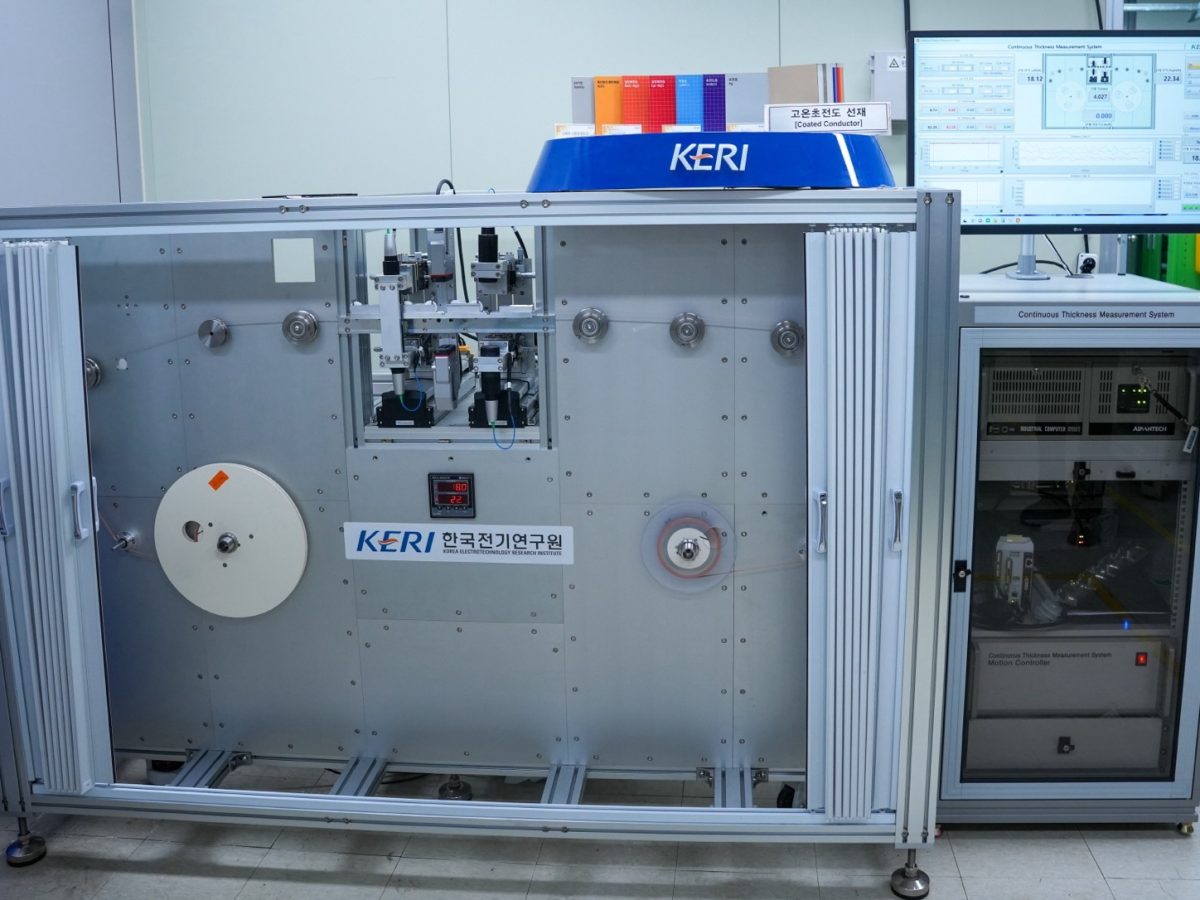

KERI’s approach places confocal laser sensors above and below a moving tape and synchronizes their sweep, allowing the system to calculate thickness without physical contact. The transfer frame winds material between reels while the sensors scan across its width. Software then reconstructs whether a section is thinner, thicker, convex or concave.
| Reported parameter | KERI result |
|---|---|
| Material form | Long high-temperature superconducting tape |
| Measurement method | Opposed confocal laser sensors |
| Contact with tape | None |
| Line speed | 100 metres per hour |
| Measurement error | 1.5 micrometres or less |
Why micrometre errors matter
The tape is only tens of micrometres thick and roughly 4–12 millimetres wide, according to the reporting. It becomes the current-carrying element in powerful magnets used in fusion research, MRI systems and high-efficiency electrical equipment. If a section is uneven, repeated winding can alter the magnet’s final dimensions or concentrate stress.
Real-time inspection changes where quality control happens. Instead of discovering a problem after a reel is completed, a manufacturer can locate the affected length during production. That can support targeted rejection, process correction and a more useful traceability record.
What is genuinely new
Confocal sensing and reel-to-reel handling are established engineering ideas. KERI’s claim concerns their synchronized use to continuously measure both surfaces and dimensions of this long superconducting material under movement and vibration. A US patent record supports the institute’s apparatus and method, while three Korean outlets independently reported the September 6 announcement and the performance figures.
“World-first” remains KERI’s characterization. This package attributes it rather than treating it as an independently audited market survey. The stronger verifiable point is the defined system: opposed sensors, moving tape, real-time shape reconstruction and a stated error bound.
Where the technology could travel
KERI says the technique could inspect other thin continuous materials, including copper and aluminium battery foils, thin-film solar products and precision electronic films. That is a proposed application, not proof that the same configuration already meets each industry’s speed, surface and calibration requirements.
The institute’s next step is to link the measurement stream to production equipment so plating or rolling conditions can be adjusted. That would move the system from inspection toward closed-loop manufacturing control. Such a deployment would need safeguards against noisy measurements and incorrect automatic corrections.
Readers tracking hardware evidence can compare this with Dreame’s connected-device showcase, where a visible demonstration still precedes long-term field reliability. KERI’s lab and patent evidence establishes the inspection architecture; production data will establish uptime and yield impact.
Our EarFun product-selection report similarly separates a published claim from independent measurement. For an industrial metrology system, calibration records, repeatability and comparison with reference gauges are the next essential layer.
What manufacturers should ask
Potential users should ask how often sensors require recalibration, how reflective coatings affect readings, what happens at tape edges and how the system flags vibration outside its validated range. Line integration, maintenance and data retention may determine commercial value as much as the headline precision.
The immediate result is nevertheless concrete: KERI has disclosed a non-contact system designed to inspect a whole moving reel in three dimensions. If its reported precision holds on factory lines, it could make small defects visible before they become expensive magnet errors.
FAQs
Does the system touch superconducting tape?
No. KERI describes upper and lower confocal laser sensors measuring the material optically.
How accurate is the reported system?
KERI reports error of 1.5 micrometres or less while tape travels at 100 metres per hour.
Is it already controlling a factory line?
Not according to the announcement. KERI says linking the measurements to automatic process adjustment is a planned next step.
