Nexstrom Funding Targets 12-Inch 2D Wafers

Nexstrom funding reached $12 million in a seed round announced on 22 September 2026, led by Xora Innovation with Foothill Ventures and SEEDS SG Growth Capital. The Singapore startup says the money will advance equipment for growing atomically thin semiconductor material across standard 300-millimetre wafers, but the investable milestone is foundry qualification—not the existence of a large tool or a laboratory sample.

Key takeaways

• The seed round brings disclosed capital to $15 million, including $3 million of non-dilutive support.
• Nexstrom is developing hardware and process technology for transition-metal dichalcogenides on 12-inch wafers.
• The company told TechCrunch it has installed a 12-inch system and has sent samples to industry partners, while withholding customer names and yield data.
• Management expects commercial readiness only between 2030 and 2035, making this a long qualification cycle.

What the Nexstrom funding actually buys

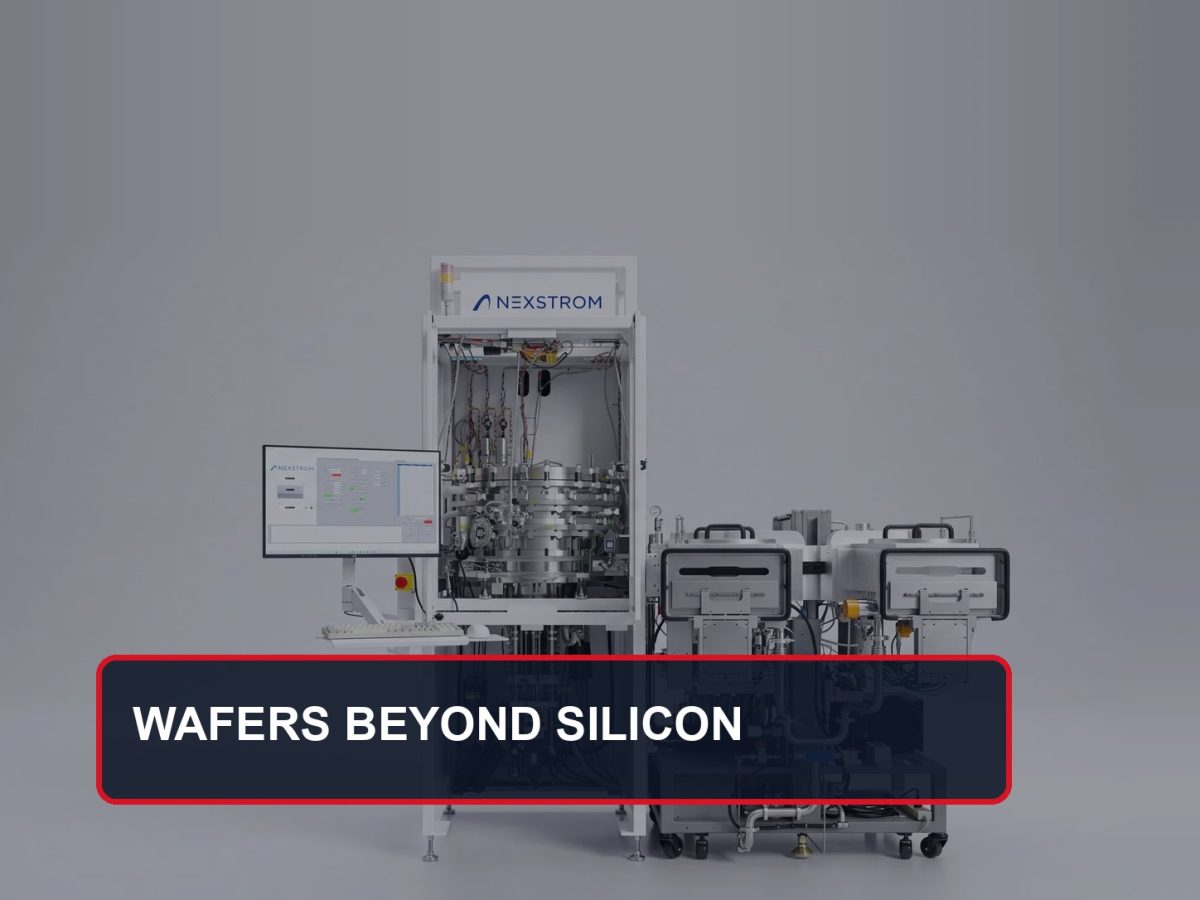

Nexstrom describes North Star as a full-stack platform combining chemical-vapour-deposition hardware, process recipes and material growth. Its purpose is to deposit extremely thin semiconducting layers directly on wafer sizes already used by advanced chip factories. That compatibility goal matters because a new material is far easier to adopt if it can enter existing manufacturing flows without forcing a factory redesign.

The company says proceeds will support process control, measurement capability, hiring and qualification work with potential customers. TechCrunch independently reported those uses and the investor set; SiliconANGLE separately confirmed the financing. The sources support a completed round, but they do not establish production yield, customer acceptance or revenue.

Why 2D materials are attractive

As silicon transistor channels become smaller, leakage and heat make each generation harder to improve. Transition-metal dichalcogenides are only a few atomic layers thick and can offer stronger electrostatic control at very small dimensions. That is why chipmakers and research institutes are testing them for future logic devices.

Thinness alone does not create a manufacturable transistor. The material has to cover an entire wafer uniformly, survive later process steps and deliver predictable electrical behaviour from device to device. A wafer-scale film with local defects or inconsistent thickness can be scientifically interesting and commercially unusable.

The 12-inch claim needs careful reading

Nexstrom says it is building the first platform for continuous single-crystal growth across 12-inch wafers. The company also told TechCrunch that it had progressed from two-inch to six-inch results and expected to complete eight-inch work by the end of October. Those statements show a development path, not independent confirmation that production-grade 12-inch wafers are shipping.

The distinction protects readers from a common hardware-funding error: treating tool size as achieved output. A chamber designed for a 300-millimetre substrate may still need years of recipe, uniformity, contamination and uptime work before customers qualify it.

Why foundry qualification is the hard gate

Advanced fabs protect yield because a failure at one step can destroy value accumulated through many earlier steps. Any new material tool must prove repeatability, particle control, maintenance behaviour and integration with upstream and downstream processes. Customers will also demand metrology that catches variation before wafers move further through the line.

Nexstrom says unnamed industry partners are testing samples. That is directionally useful but not the same as a purchase order or production insertion. The strongest future disclosure would name a qualification partner, define wafer specifications and report repeatable results across multiple runs.

A long timeline changes the financing logic

Management’s 2030–2035 commercial estimate implies several funding cycles may be required. Equipment development, materials research and customer qualification consume capital before substantial revenue. The current round therefore buys technical milestones and negotiating leverage, not a complete path to scale.

Investors should watch burn rate, strategic partnerships and access to demonstration facilities. Customers should look for sample uniformity, defect density, throughput and total cost of ownership. Those metrics will reveal whether the platform can compete with other deposition approaches.

Competition validates the field, not the company

Large chipmakers, equipment suppliers and research organisations are also working on 2D-material integration. Their involvement confirms that the physical problem matters, but it does not validate Nexstrom’s specific process. The startup must show that its method is differentiated in crystal quality, wafer coverage, temperature budget or production economics.

The story is comparable to TUSK IC’s chip scale-up funding, where capital must translate into manufacturable hardware, and Alibaba’s Zhenwu V900 chip launch, where deployment evidence matters more than a specification headline.

What to watch next

The next useful evidence is an eight-inch milestone backed by measured uniformity, followed by repeatable 12-inch runs and a named foundry qualification programme. Equipment orders, installed systems at customer sites and audited revenue would mark later stages.

Until then, Nexstrom funding should be understood as a wager on a manufacturing bottleneck. The round gives the team time to move a promising material from research toward a production process; it does not prove that the bottleneck has been solved.

Nexstrom’s $12 million seed round finances the move from promising 2D materials to 300-millimetre manufacturing, but commercial credibility will depend on repeatable wafer quality and foundry qualification rather than the nominal size of its tool.

What the round does not establish

The announcement does not identify a paying foundry, a contracted tool price or independently measured wafer yield. It also does not disclose how many wafers the installed system can process per day. Those omissions are normal at seed stage, but they limit conclusions about commercial competitiveness.

Nexstrom’s technical claims remain company claims until customers or research partners publish comparable measurements. An investor can believe the problem is important without assuming this team has already won. The useful discipline is to separate market need, laboratory promise, engineering scale-up and qualified production into four different evidence levels.

Why metrology may become as important as deposition

Growing a film is only one part of a production system. Engineers must measure thickness, crystal orientation, defects and uniformity quickly enough to adjust recipes. If inspection is slow or destructive, factory economics suffer even when material quality is high.

The company says the round will improve measurement capability. That allocation matters because customers need proof at wafer scale, not isolated microscope images. Nexstrom should eventually disclose how it maps an entire wafer, how variation changes between runs and whether measurement feedback improves process control.

Frequently asked questions

How much did Nexstrom raise?

Nexstrom announced a $12 million seed round, bringing total disclosed capital to $15 million including $3 million in non-dilutive funding.

What does Nexstrom make?

It develops equipment and process technology intended to grow atomically thin semiconductor materials across standard 300-millimetre wafers.

Is Nexstrom already in commercial production?

No production customer was disclosed. Management told TechCrunch that commercial readiness may fall between 2030 and 2035.
